Specifications

BS EN ISO 15614:1 Group 10.1
AWS 5.4 E2553-XX W39553
ASME IX: Group P10H

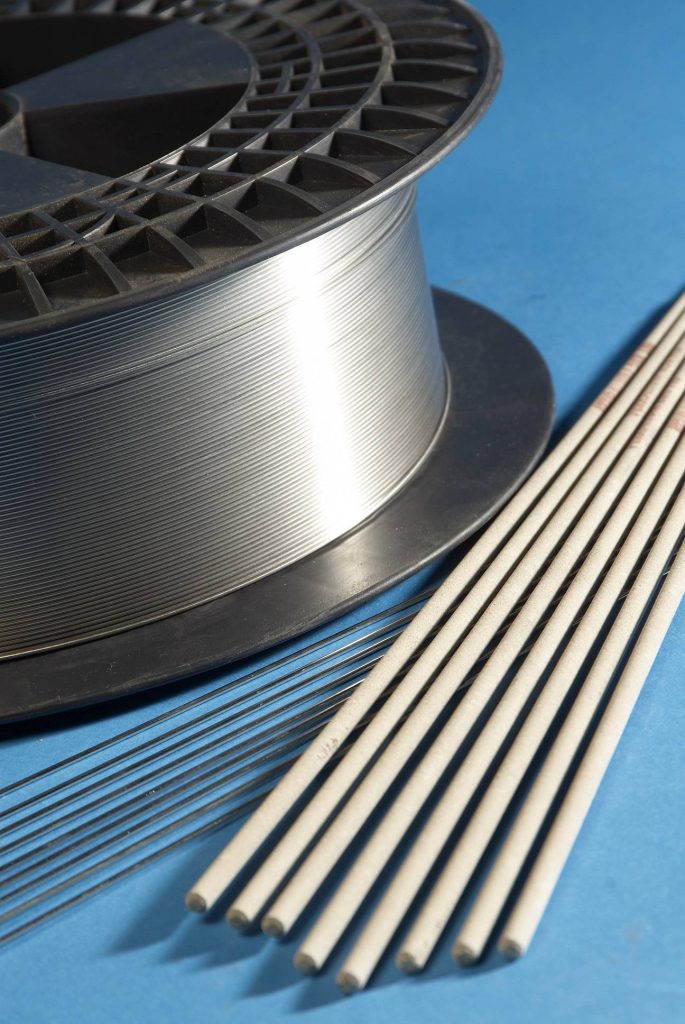

Ferralium 255 Welding Wire (S32550)

Ferralium^® 255 – SD50 is produced to complement our leading range of super duplex 255 stainless steels. Careful formulation of the weld wire composition ensures the optimum combination of weld strength and corrosion resistance, achieved by over-alloying the wire with nickel to maintain the correct (austenite / ferrite) phase balance.

Product Downloads
Request a Quote

Specifications

BS EN ISO 15614:1 Group 10.1
AWS 5.4 E2553-XX W39553
ASME IX: Group P10H

View Data Tables For This Product

Data Tables

Chemical Composition:

	Cr	Ni	Mo	Co	Nb (+Ta)	Ti	V	W	Cu	C	Mn	N	Si	P	S	Fe	Al
Min	24	6.5	2.9						1.5		0.5	0.1	0.3
Max	27	8.5	3.9						2.5	0.06	1.5	0.25	0.7	0.04	0.03

Mechanical Properties:

	Minimum	Typical
Tensile strength, N/mm² (ksi)	750 (109)	940 (136)
0.2% Yield strength, N/mm² (ksi)	550 (80)	760 (110)
Elongation 5.65√So, %	20	24
Hardness (Vickers)		300
Impact strength @ -46^oC (-50F), J (ft-lb)	45 (33)	70 (52)

Physical Properties:

Welding process	Weld wire diameter	Product form
GTAW	1.6mm (1/16”)	Bare wire cut in 1m (39.4”) lengths, in tube packs of 5.0kg.
	2.4mm (3/32”)	Individually coin stamped at one end with FER 255-SD50.
	3.2mm (1/8”)	Batch number printed on labels.
GMAW	1.2mm (3/64”)	Wound on spools (DIN 300 standard) of 12.5kg weight
GMAW	1.2mm (3/64”)	Labelled and marked with FERRALIUM 255-SD50.

Key Features:

Ferralium® 255-SD50 weld wire is available for GTAW and GMAW welding processes
Available in diameters 1.2mm, 1.6mm (1/16”), 2.4mm (3/32”) and 3.2mm(1/8”)
Over-alloyed in nickel to ensure correct phase balance is maintained when welding with standard shielding and backing gases

Applications:

GTAW (TIG) welding
GMAW (MIG) welding
